Factory Specifications

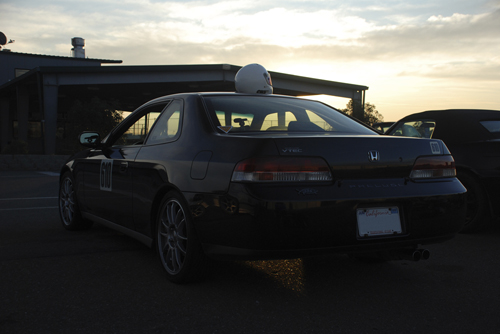

Prelude Sunrise

Here is a short list of factory specifications.

  • General
    • Vehicle type: sport coupe
    • Engine: 2.1 liter 4-cylinder DOHC VTEC
    • Drive type: front wheel drive
    • Transmission: 5-speed manual
    • Suspension: 4-wheel double wishbone
    • MSRP: $23,200
  • Chassis and Body
    • Chassis code: BB6
    • Overall dimensions
      • Length: 178.0 inches
      • Width: 68.9 inches
      • Height: 51.8 inches
    • Wheelbase: 101.8 inches
    • Track
      • Front: 60.0 inches
      • Rear: 59.6 inches
    • Curb weight: 3042 lbs
    • Weight distribution
      • Front: 63%
      • Rear: 37%
    • Aerodynamic drag coefficient: 0.6
  • Engine
    • Type: H22A4, water cooled 4-stroke DOHC VTEC 4-cylinder gasoline engine
    • Block: aluminum block & head, inline 4
    • Valve train: belt driven, DOHC
    • Displacement: 2157 cc
    • Bore and stroke: 87.0 mm x 90.7 mm
    • Compression ratio: 10.0:1
    • Horsepower: 195 hp @ 7000 rpm
    • Torque: 156 lb-ft @ 5250 rpm
    • Redline: 7400 rpm
    • Fuel Injection: electronic, sequential port
    • Fuel: premium unleaded, 91 pump octane
  • Drive train
    • Transmission: 5-speed manual
      • 1st: 3.285
      • 2nd: 1.956
      • 3rd: 1.344
      • 4th: 1.034
      • 5th: 0.812
      • Final drive: 4.266
  • Suspension
    • Independent double wishbone, front and rear
    • Coil springs, tube shocks
    • Sway bars
      • Front: 24.2 mm
      • Rear: 23.0 mm
  • Brakes
    • 4-wheel disc brakes
    • Rotors
      • Front: 11.1-inch vented discs
      • Rear: 10.25-inch discs
    • Vacuum assisted
    • ABS
  • Steering
    • Rack and pinion
    • Variable power assisted
    • Steering ratio: 15.6:1
    • Turns: 2.76 lock-to-lock
    • Steering diameter: 36.1 feet
  • Wheels
    • OEM 5-spoke wheel, directional
      • Cast aluminum alloy
      • Size: 16 x 6.5, +55 mm offset
      • Weight:
      • Moment of inertia:
    • Bridgestone Potenza RE92
      • Size: 205/50VR16
      • Load rating: 87V (1201 pounds, 149 mph)
      • Weight: 21 pounds
      • UTQG tread wear rating: 160
      • UTQG traction rating: A (above 0.47 g's on asphalt, 0.35 g's on concrete)
      • UTQG temperature rating: A (over 115 mph)
      • Diameter: 21.4 inches
      • Revolutions per mile: 864
  • Fuel Economy
    • EPA Mileage Estimates
      • City: 22 gpm
      • Highway: 27 gpm
    • Fuel Capacity: 15.9 gallons
